Ships in 6-8 Weeks

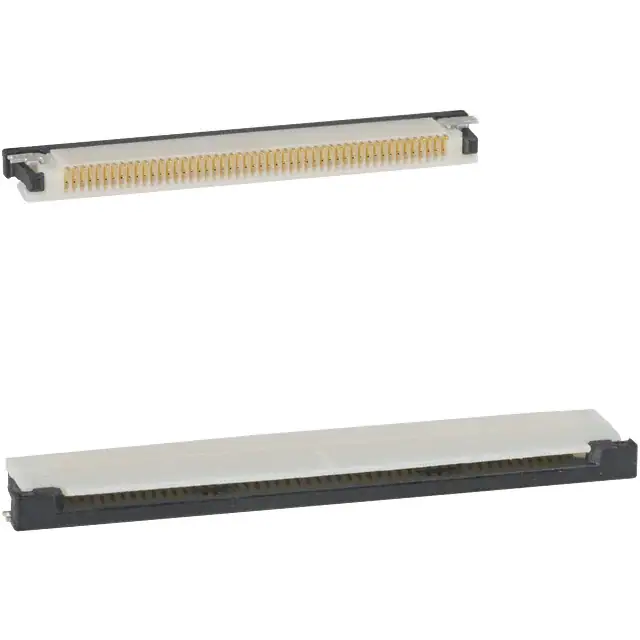

62684-502100ALF
Datasheet
1MB
Specifications
| Digi-Key Part Number | 609-1202-2-ND – Tape & Reel (TR) |
| 609-1202-1-ND – Cut Tape (CT) | |
| 609-1202-6-ND – Digi-Reel® | |
| Manufacturer | Amphenol ICC (FCI) |
| Manufacturer Product Number | 62684-502100ALF |
| Description | CONN FPC TOP 50POS 0.50MM R/A |
| Manufacturer Standard Lead Time | 27 Weeks |
| Detailed Description | 50 Position FPC Connector Contacts, Top 0.020″ (0.50mm) Surface Mount, Right Angle |
| Category | Connectors, Interconnects |
| FFC, FPC (Flat Flexible) Connectors | |
| Mfr | Amphenol ICC (FCI) |
| Series | OPU |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top |
| Number of Positions | 50 |
| Pitch | 0.020″ (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.079″ (2.00mm) |
| Locking Feature | Slide Lock |
| Cable End Type | Tapered |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Actuator Material | Thermoplastic, Glass Filled |
| Features | Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -55°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 0.5A |
| Contact Finish Thickness | 2.00µin (0.051µm) |
| Housing Color | Beige |
| Actuator Color | Beige |
| Mating Cycles | 20 |
| Base Product Number | 62684 |
